Troubleshooting Voice Quality Issues

If you are experiencing issues with voice quality, please verify the router is configured for VOIP prioritization (VOIP QoS, Port Forwarding)​.

If quality issues persist, follow the troubleshooting steps below based on your experience:

Hardware Troubleshooting:

Networking and LAN Issues ​

  • Check equipment wiring​.
  • Ensure hardware is plugged in correctly​.
  • Unplug the connections from the router and phone, leave them unplug for 10 seconds and plug them back in.​

Echo

  • Cover the phone mouthpiece. If the echo stops, turning down the earpiece or speaker volume might help.

Poor Audio Quality​

  • Turning down the earpiece or speaker volume might help.​

  • Remove any devices in the middle like extenders or network hubs.​

  • Upgrade old equipment like old headsets or handsets.

Buzzing

  • Keep your phone away from other devices, especially Wi-Fi-enabled devices or power cables.​

Delay in Voice

  • Avoid using damaged and/or long wires.​

  • Remove any devices in the middle like extenders or network hubs.​

  • Upgrade any old equipment like old headsets or handsets.

Network Troubleshooting:

Internet

  • Voice quality issues could be related to your internet bandwidth. Verify that your bandwidth meets or exceeds the requirements for RevenueWell Phone. Click here to access a list of internet bandwidth requirements
  • Verify with ISP that the internet connection is ideal for audio and video conferencing.
  • Upgrade internet bandwidth with ISP when needed.

Verify Ports are Open:

  • If outbound ports are blocked, it can cause issues with voice quality, screen pop functioning, and other backend phone services. The ports used are:
    • 8443 - For api connectivity from web interface to backend
    • 5443 - Websockets: needed for screen pop
    • 5065 - Webrtc: webphone
  • Test your ports availability by clicking on the following links:
    http://portquiz.net:8443
    http://portquiz.net:5065
    http://portquiz.net:5443

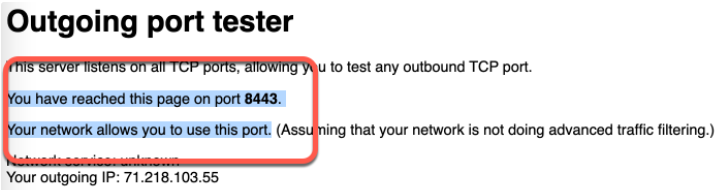

    • A successful test should return:


  • If ports are blocked, complete the following:
    • Whitelist the following URLs:
      • pms.revenuewell.com
      • pms2.revenuewell.com
      • pms3.revenuewell.com
      • pms4.revenuewell.com
      • pmsc.revenuewell.com
      • messenger.revenuewell.com
      • messengerapi.revenuewell.com
      • patientconnect365.com
      • d1.patientconnect365.com
      • forms.patientconnect365.com
      • rwlogin.com
      • www.rwlogin.com
      • oidc.rwlogin.com
      • oauth2-core.rwlogin.com
      • join.patientconnect365.com
      • join-api.patientconnect365.com
      • s1.revenuewell.com
      • p1.revenuewell.com
      • coreapi.revenuewell.com
      • e1.revenuewell.com
      • formsapi.revenuewell.com
      • pctv.revenuewell.com
      • downloads.revenuewell.com
      • phones.allow.revenuewell.net
    • Open the following ports:
      • 8443
      • 5443
      • 5065

If quality issues persist, collect the following information:

  1. Results of internet speed test
  2. Copy of the results from the port availability test
  3. Example(s) including:
    • Time and date of the call(s) experiencing quality issues
    • Phone number calling
    • Issue experienced

Email this information to Customer Support at support@revenuewell.com for further assistance.
