IP Addresses and NAT Configuration Requirements

  • To locate a device IP address, reference the appropriate steps below:

    1. Navigate to Settings > Status

    2. Navigate to Network

    3. Navigate to TCP/IP Parameters

    4. On this screen you will find your phone’s IP address

    Polycom Devices

    1. From Home/Menu, select Settings.

    2. Select Status.

    3. Select Network.

    4. Select TCP/IP Parameters.

    The resulting screen will show your phone's IP, in addition to other useful information such as the Subnet Mask and IP Gateway.

  • To lookup an office’s external or public IP use any of the methods below:

    Some practices might have both an IPv4 and a IPv6 address, for troubleshooting we use IPv4 only. IPv4 Examples: 1.2.3.4 or 01.102.103.104. IPv6 Examples: 2001:db8:3333:4444:5555:6666:7777:8888 or ::11.22.33.44.

  • To ensure that only one firewall is inspecting traffic and handling NAT (Network Address Translation), your office firewall must be configured with your Public IP Address on its WAN port (interface). You may need your ISP's (Internet Service Provider) help to configure this.


    Non-public IP Address would fall into IP ranges below. If you see an IP address on your firewall WAN port from the range below that means that your ISP modem is also acting as a firewall/router and is also engaging in NAT activities. You should then contact your ISP to help put your modem into “Bridge” or “Bridged” mode allowing a Public IP address to be assigned to your Firewall/Router.

     10.0.0.0-10.255.255.255
     172.16.0.0-172.31.255.255
     192.168.0.0-192.168.255.255


    A bridged configuration ensures that the modem supplied by your internet service provider isn't behaving as an additional firewall on your network. This ensures traffic will be handled correctly and without delay.

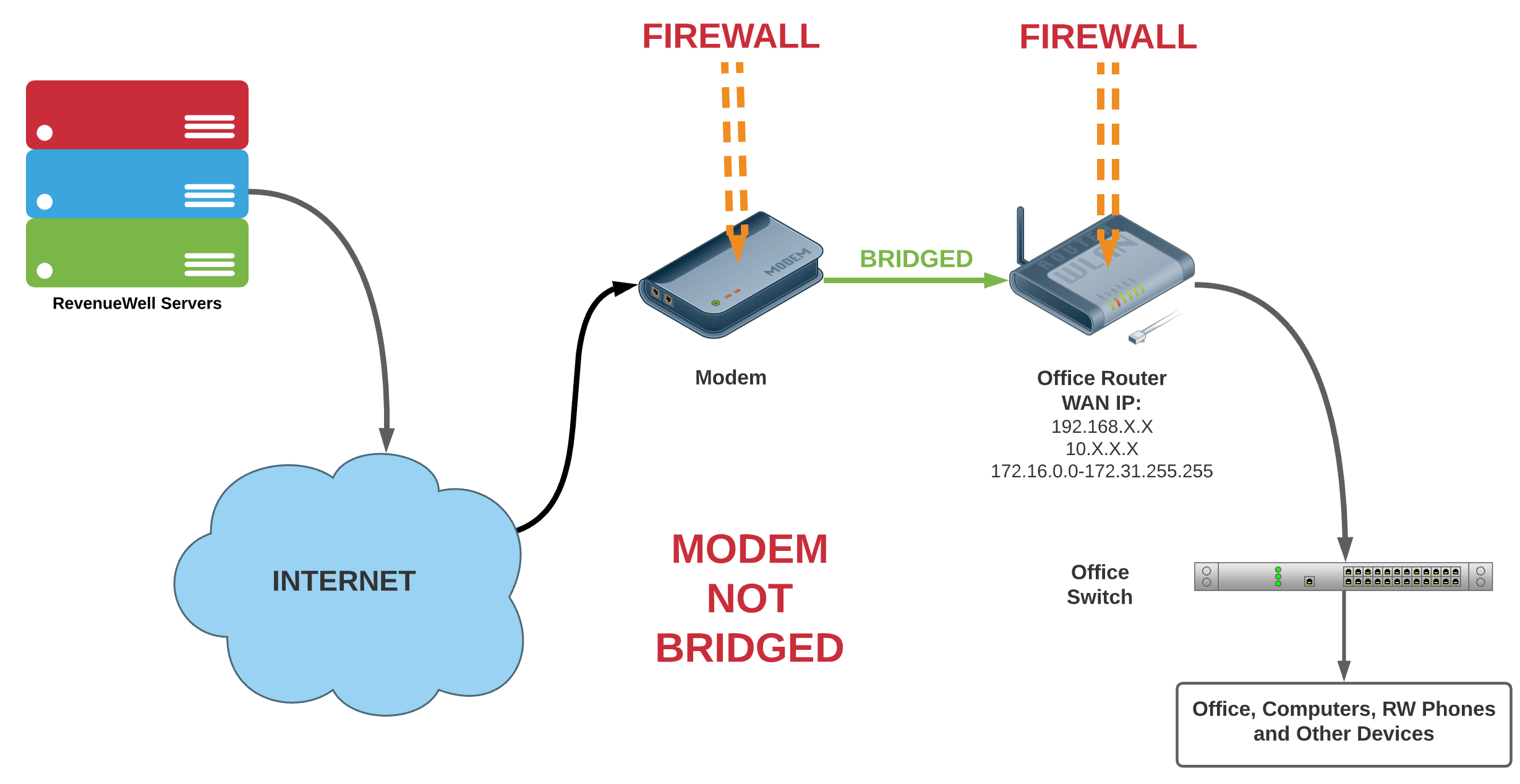

    A non-bridged (or Double NAT) topology enables the modem to behave as an additional firewall and NAT device on the network. This extra firewall is at best superfluous and at worst can cause frustrating connection issues. In order to avoid these problems, it is best to place the modem into bridge mode and let the office's main router handle all firewall, NAT, and routing functions.


    Please be advised that customers are responsible for ensuring that all technical requirements for utilizing RevenueWell are met—additionally, any supplementary network equipment setup and upkeep.
